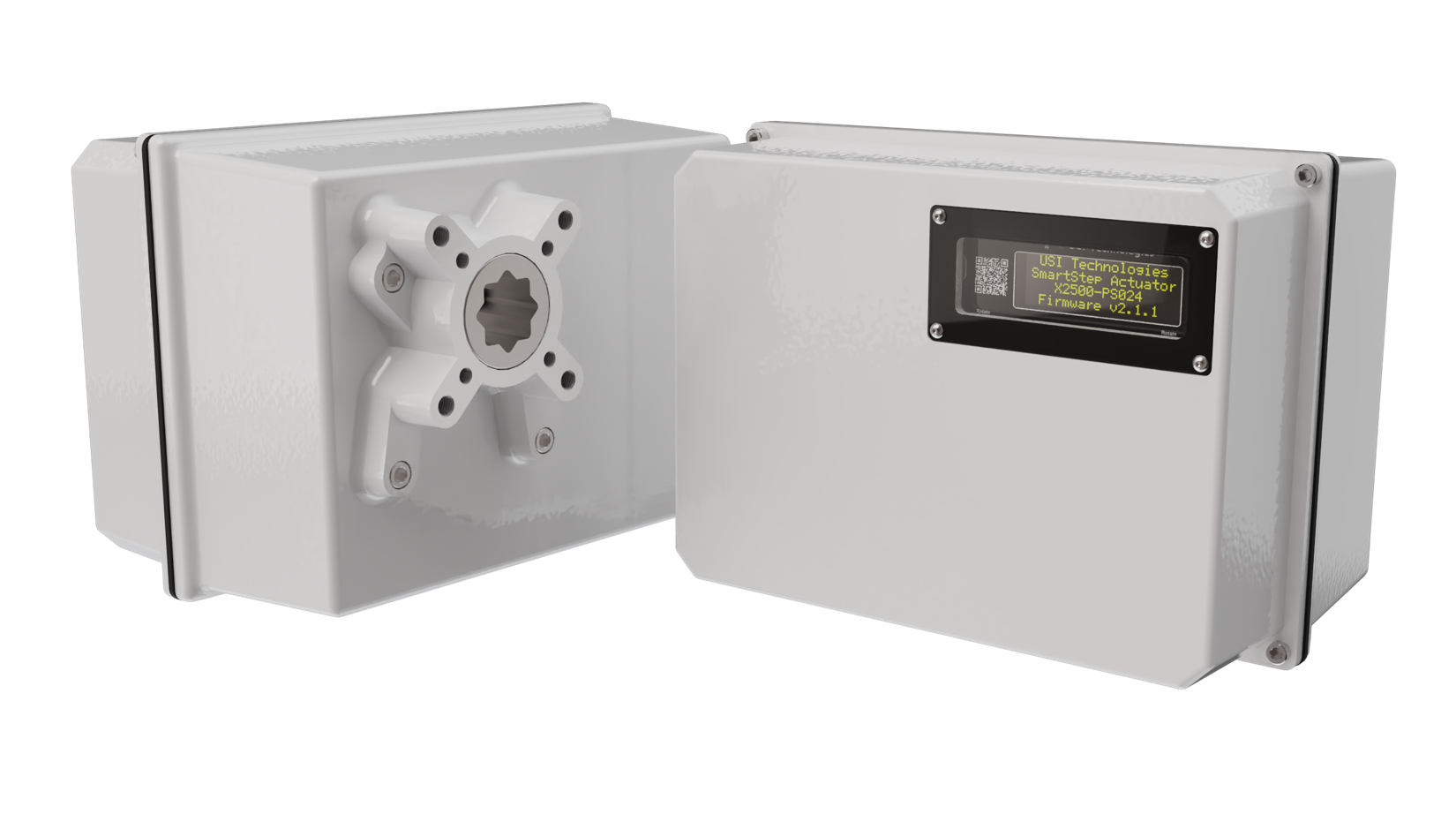

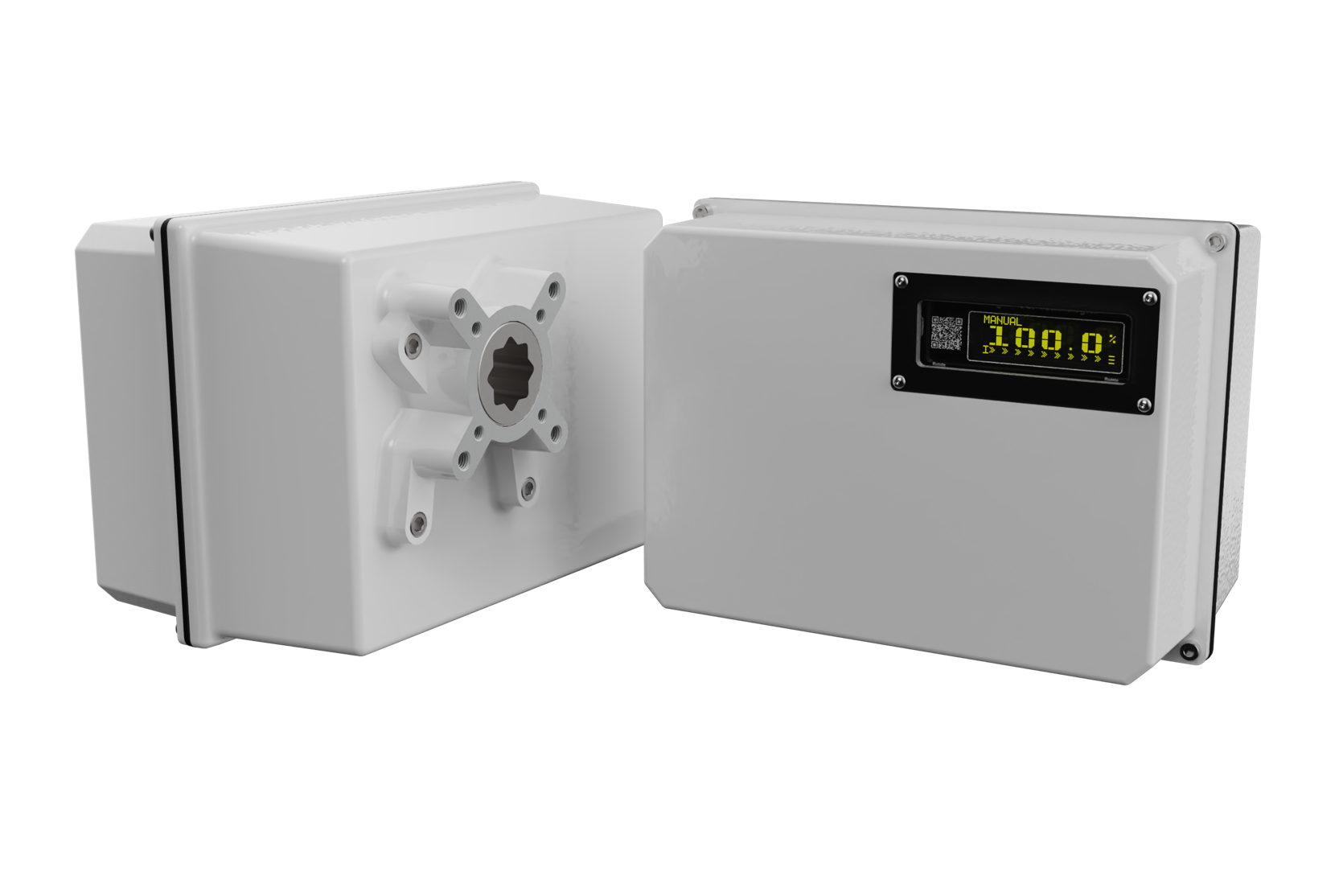

SmartStepTM X-Series

AC or DC Powered Precision Electric Actuator

Our fourth generation actuator builds on the strengths of the generations before it while adding extra functionality in a hazardous location rated standard package for all models.

Benefits

Non-Contact Position Sensing

No mechanical switches to wear out

Capacitor Based Electronic Power Backup

Allowing for backup lifespan of greater than 10 years

Customizable Speed Settings

Each model may be customized to fit your Open/Close speed needs

  • X0400: 3-10 seconds for 90° rotation
  • X1200: 7-20 seconds for 90° rotation
  • X2500: 12-36 seconds for 90° rotation
  • X5000: 28-35 seconds for 90° rotation

Hazardous Location Rating is standard

Class 1, Division II, Group A, B, C, and D

Multi-Turn Capable

Right out of the box as of firmware 4.0.0

High Number of Starts Per Hour

Can exceed 6000 starts per hour

Permanently Lubricated Drivetrain

No maintenance needed

Programmable Feedback Standard

4-20mA feedback allows remote reading of exact position of the actuator shaft

100% Modulation Standard

4-20mA or 0-10V DC control input standard

Technical Specifications

Build Enclosure:

    Heavy Duty NEMA4 Rated Cast Aluminum Enclosure

Gearbox Options:

    500, 1200, 2500, or 5000 In/Lb

Precision:

    0.5 degree using 4-20mA

    0.3 degree using MODBUS (both RTU and TCP available)

Operating Temperature:

     -40 to 140ºF (-40 to 60ºC)

Mounting:

    ISO5211 F07 & F10 compatible

    M8 bolts for F07 mount should be tightened to 160 in-lbs

    M10 bolts for F10 mount should be tightened to 300 in-lbs

Physical Dimensions:

    8.5”H x 11.25”W x 8.8”D

Options:

    SuperCap Backup, AC In Power Supply

Ratings:

    UL/CUL & CE Approved; Hazardous location rated for Class 1, Division II, Group A, B, C, and D

Input Power:

    24VDC, 48VDC, 120-240VAC*

System Protection:

  • 4-20mA input protected to 240VAC
  • 4-20mA output protected to 24VDC
  • Isolated MODBUS ground

Networking:

    Ethernet port standard

Status Output:

    Relay outputs allow for external monitoring of Open, Closed, or Error status

    MODBUS allows external monitoring of all supported product status flags as shown in the SmartStep User Guide found in Downloads Section.

Drive Speed:

    Programmable, unit shipped at 70% of max gearbox speed

Modular Design:

    Control module and SuperCap/Power Supply module are designed to be field replaceable so that in the event of a failure, a new module may be inserted into the actuator without having to detach the actuator from the valve.


Downloads

Frequently Asked Questions

Most all common questions can be found in our Quick Start Guide or Full User Manual, but see below for a few common questions.



How do I calibrate end points?

    It’s incredibly straightforward, as a matter of fact there’s a video below walking you through the process!

What model do I have?

    You can either press the left arrow from the main screen of the XCTRL to see your model number, or you can look at the sticker either on the stepper motor or the right side of the casting if looking at it when the XCTRL is facing upwards.  Units made since 08/2023 have moved the motor label to the inside wall of the casting right next to the stepper motor.

How do I change automatic operation modes?

    To change the automatic operation mode that your actuator is using, press the AUTO button repeatedly until the mode you want is shown.  Once it is shown, press the ENT button to select it

How long does the SuperCap back-up last?

     The SuperCap backup is designed to last for one 90° stroke on all models.  Since all models are taken in to account, that means that an X0400 will get a longer SuperCap backup operation than the X5000 due to the 90° cycle time.

Do I have to replace the whole actuator if there’s a problem?

    Nope!  The entire actuator only has to be replaced if it’s deemed that the gearbox is defective.  Otherwise the XCTRL and Power Supply modules are easily upgraded or changed in the field.

How do I know if I have a SuperCap?

    There are a few ways to check this:

  • Look to see if a five position cable is plugged in to the left side of the XCTRL module
  • Verify your model number.  If the model number the ends with -EPB then you have SuperCap backup
  • Look in the upper right hand corner of the XCTRL screen, if a charge percentage is shown, you have a SuperCap

Video Training

Below are a collection of videos on how to operate and calibrate the SmartStep Actuator.

Feel free to request a certain video if what you need isn’t shown below.

End Point Calibration

This goes over the initial setup needed to set the SmartStep end points.

On-Off Setup

If you have a SmartStep with SuperCap backup (i.e. part number is X0400-PSUNI-EPB) the EPB signifies SuperCap capability.  Having a SuperCap enables this automatic mode of operation.  This explains what that’s all about

XCTRL Module Swap

In the event that your XCTRL is damaged and needs to be replaced, this walks you through the process.  That means that if there is a field failure, you can replace just the control module and not the entire actuator!  If you have an extra one on hand that means no downtime!
