XT Series

AC or DC Powered Precision Electric Actuator

Our third generation actuator offers high precision in a compact NEMA 4X enclosure.

Benefits

High Number of Starts Per Hour

Can exceed 6000 starts per hour

Non-Contact Position Sensing

No mechanical switches to wear out

Capacitor Based Electronic Power Backup

Allowing for backup lifespan of greater than 10 years

Customizable Speed Settings

Each model may be customized to fit your Open/Close speed needs

  • 1200XT: 7-30 seconds for 90° rotation
  • 2500XT: 12-54 seconds for 90° rotation

Permanently Lubricated Drivetrain

No maintenance needed

Programmable Feedback Standard

4-20mA feedback allows remote reading of exact position of the actuator shaft

100% Modulation Standard

4-20mA or 0-10V DC control input standard

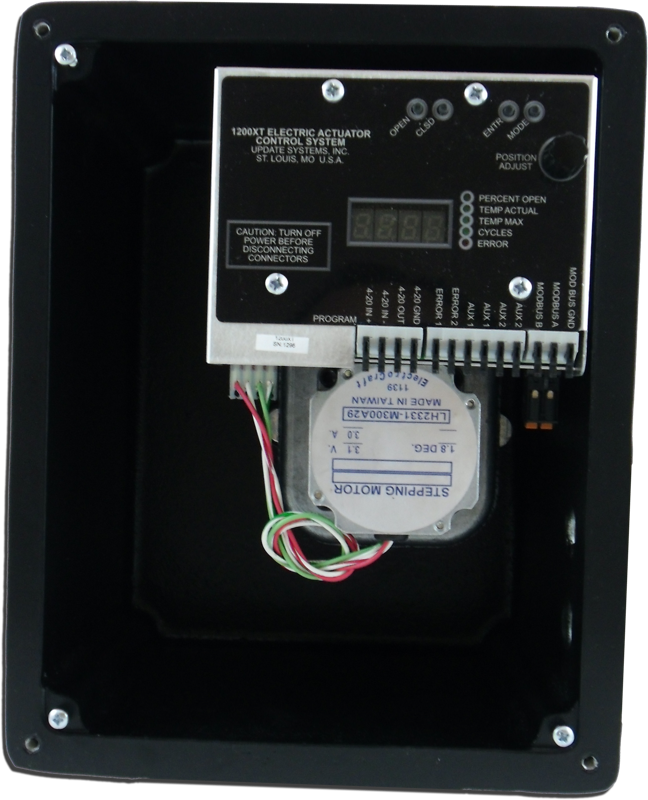

Technical Specifications

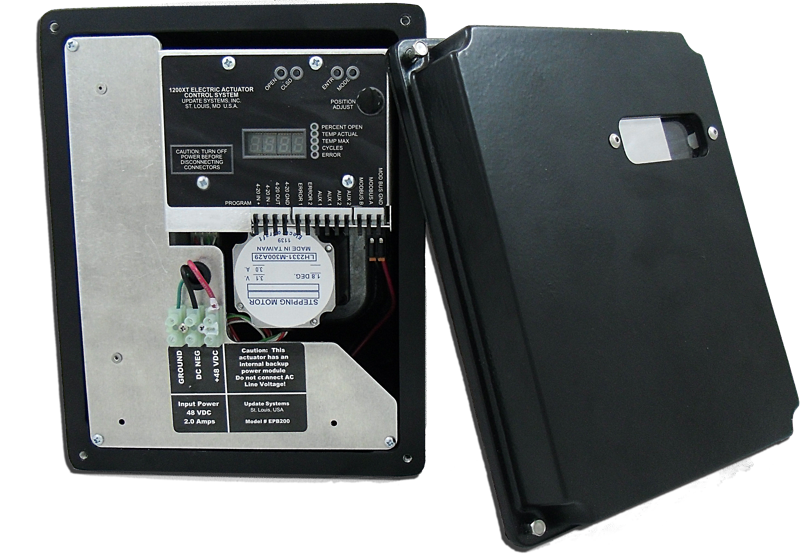

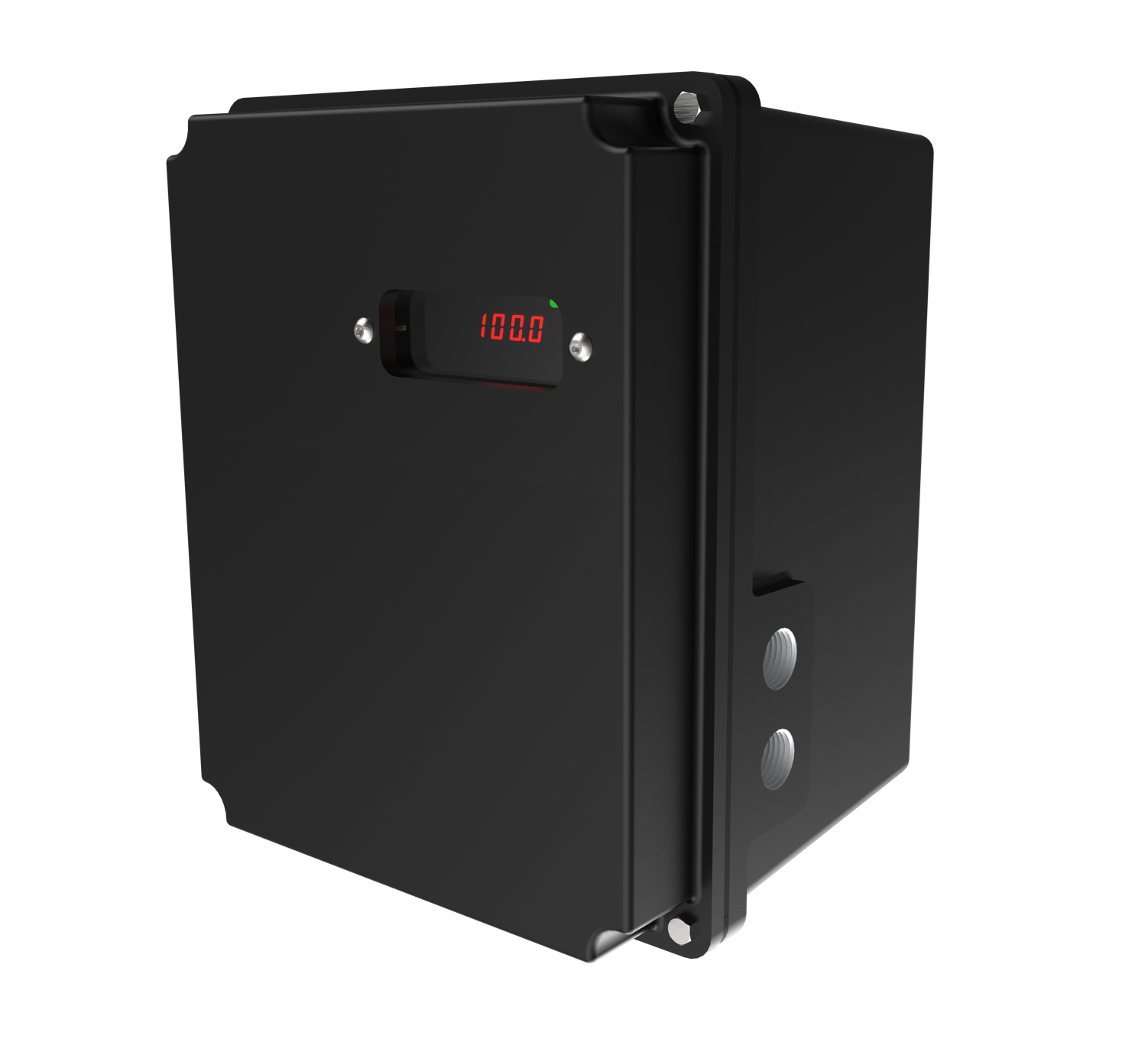

Build Enclosure:

    Heavy Duty NEMA4 Rated Cast Aluminum Enclosure

Gearbox Options:

    1200 or 2500 In/Lb

Precision:

    0.5 degree using 4-20mA

    0.3 degree using MODBUS (both RTU and TCP available)

Operating Temperature:

     -22 to 140ºF (-30 to 60ºC)

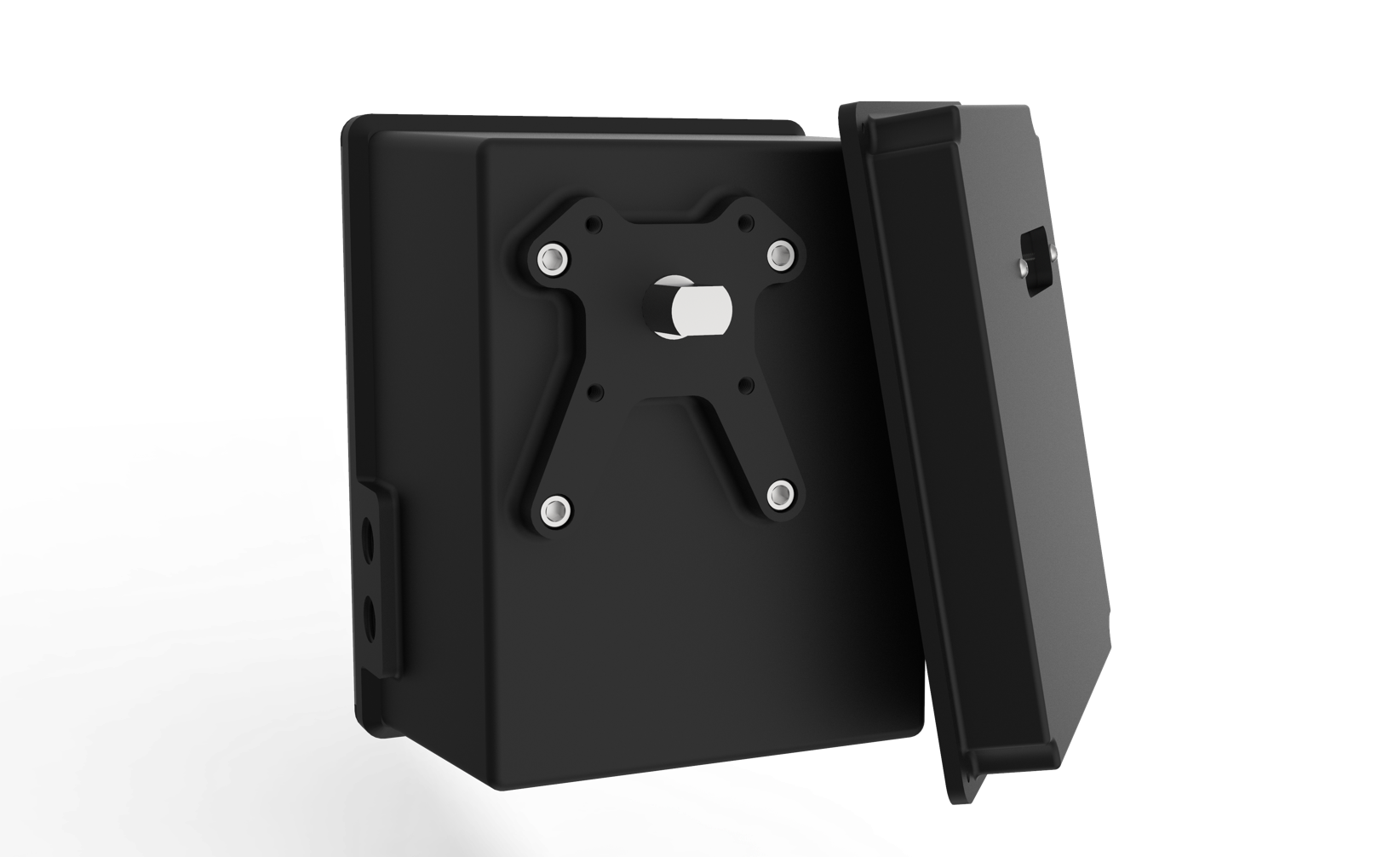

Mounting:

    0.625” Double-D shaft for coupler mating

Physical Dimensions:

    10”H x 8”W x 7.76”D

Options:

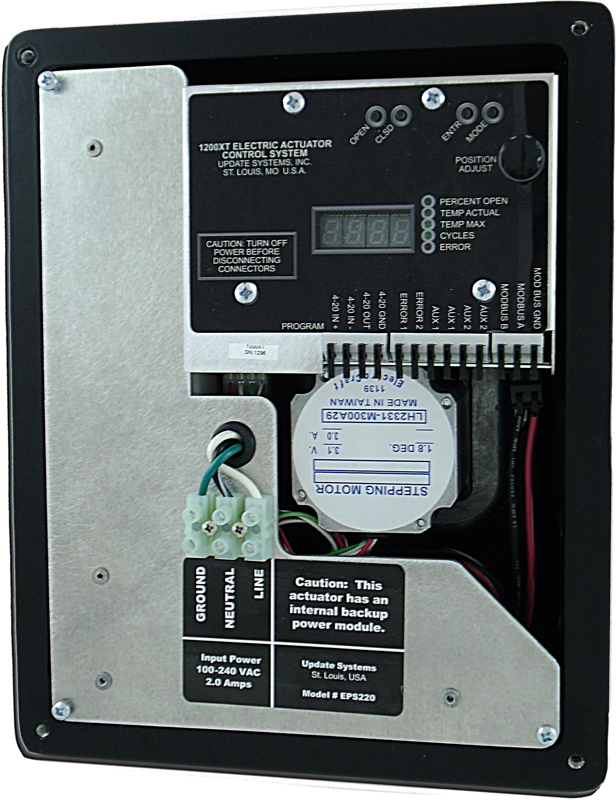

    SuperCap Backup, AC In Power Supply

Ratings:

    UL/CUL & CE Approved

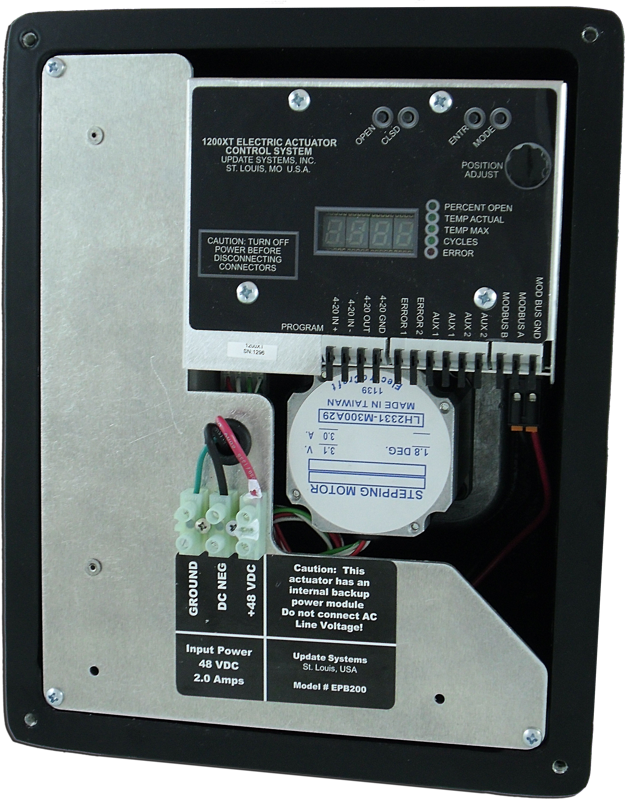

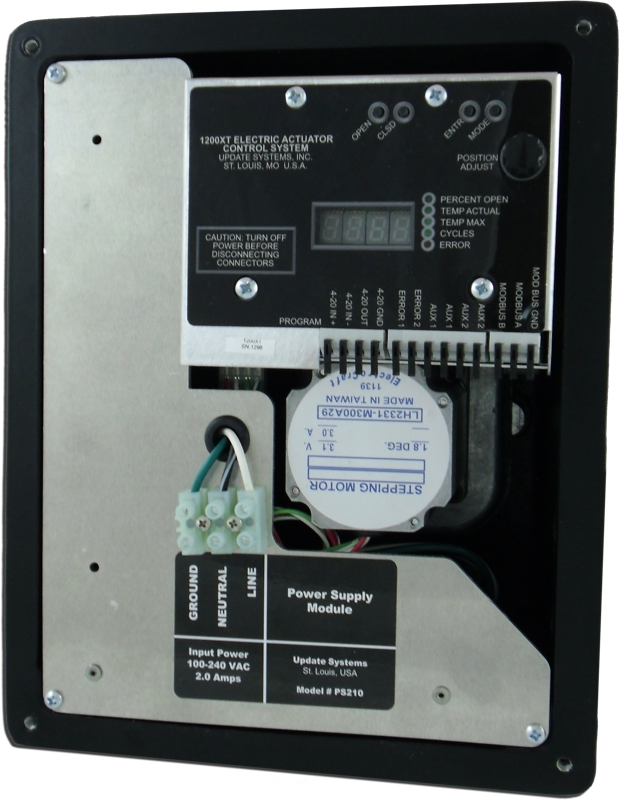

Input Power:

    48VDC or 120-240VAC*

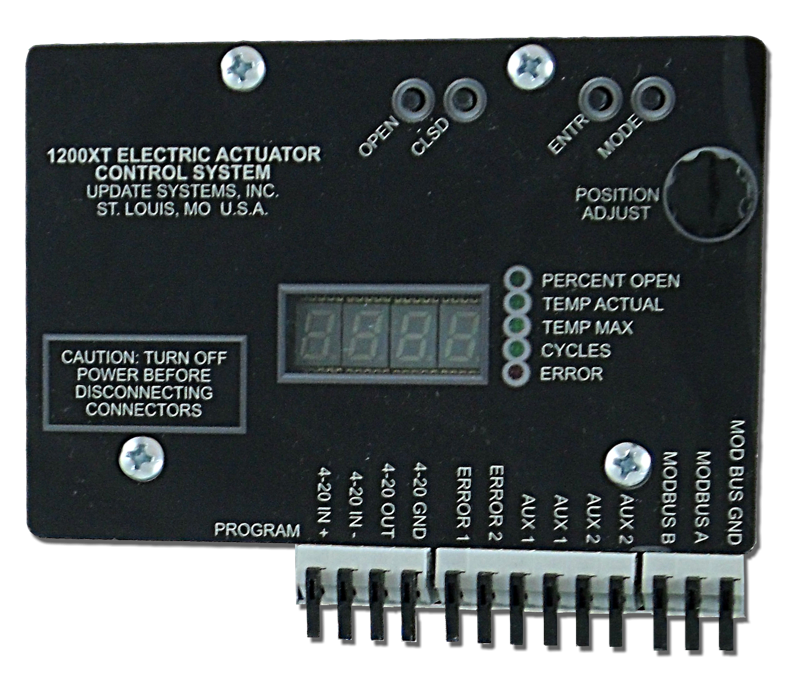

Status Output:

    Relay outputs allow for external monitoring of Open, Closed, or Error status

    MODBUS allows external monitoring of all supported product status flags as shown in the XT User Guide found in Downloads Section.

Drive Speed:

    Programmable, unit shipped at 100% of max gearbox speed





*Dependent on options when ordered.  48VDC is standard
