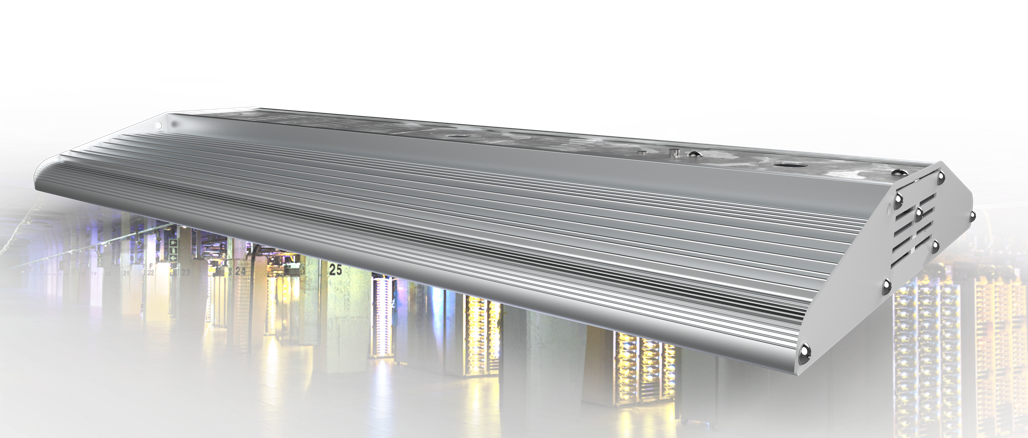

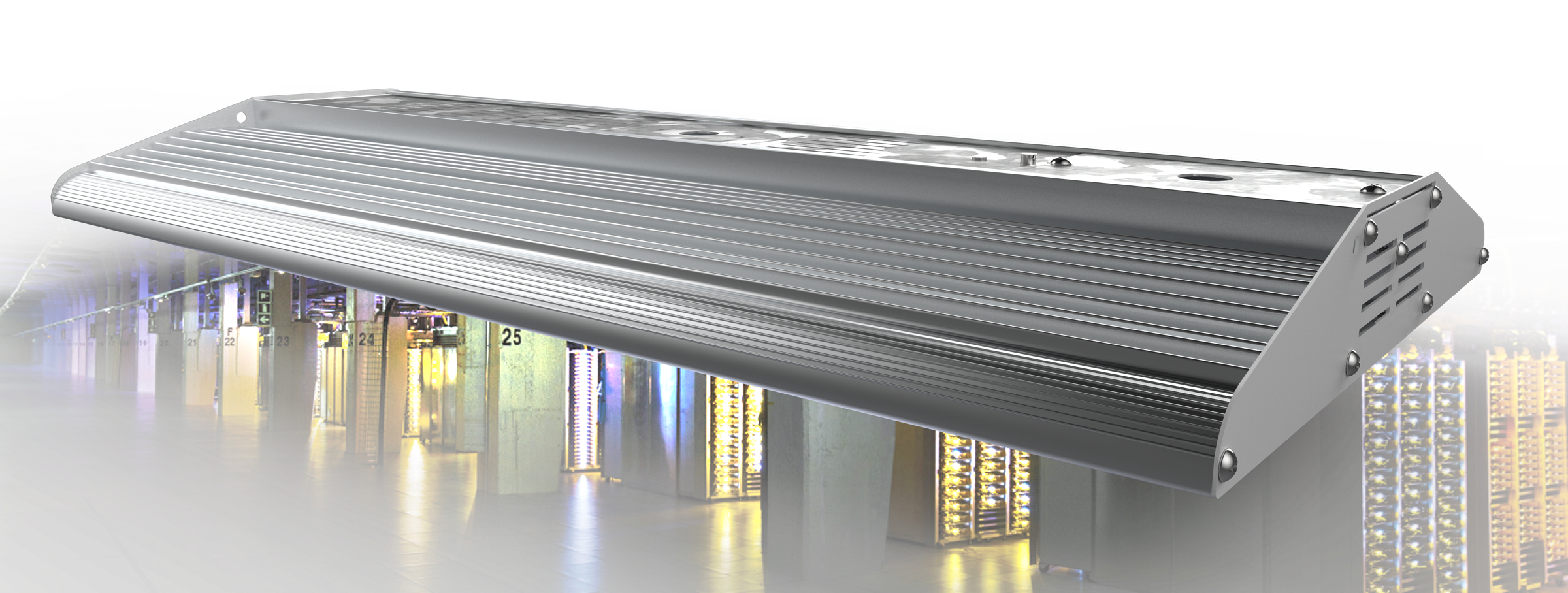

US Series

Rugged & Efficient High Bay LED Fixtures

Benefits

Highly Efficient Light Output

Up to 168 lumens per watt

In-House PCB Manufacturing

All LED boards are designed and built on-site.  So if a custom LED is needed the resources are there to produce it

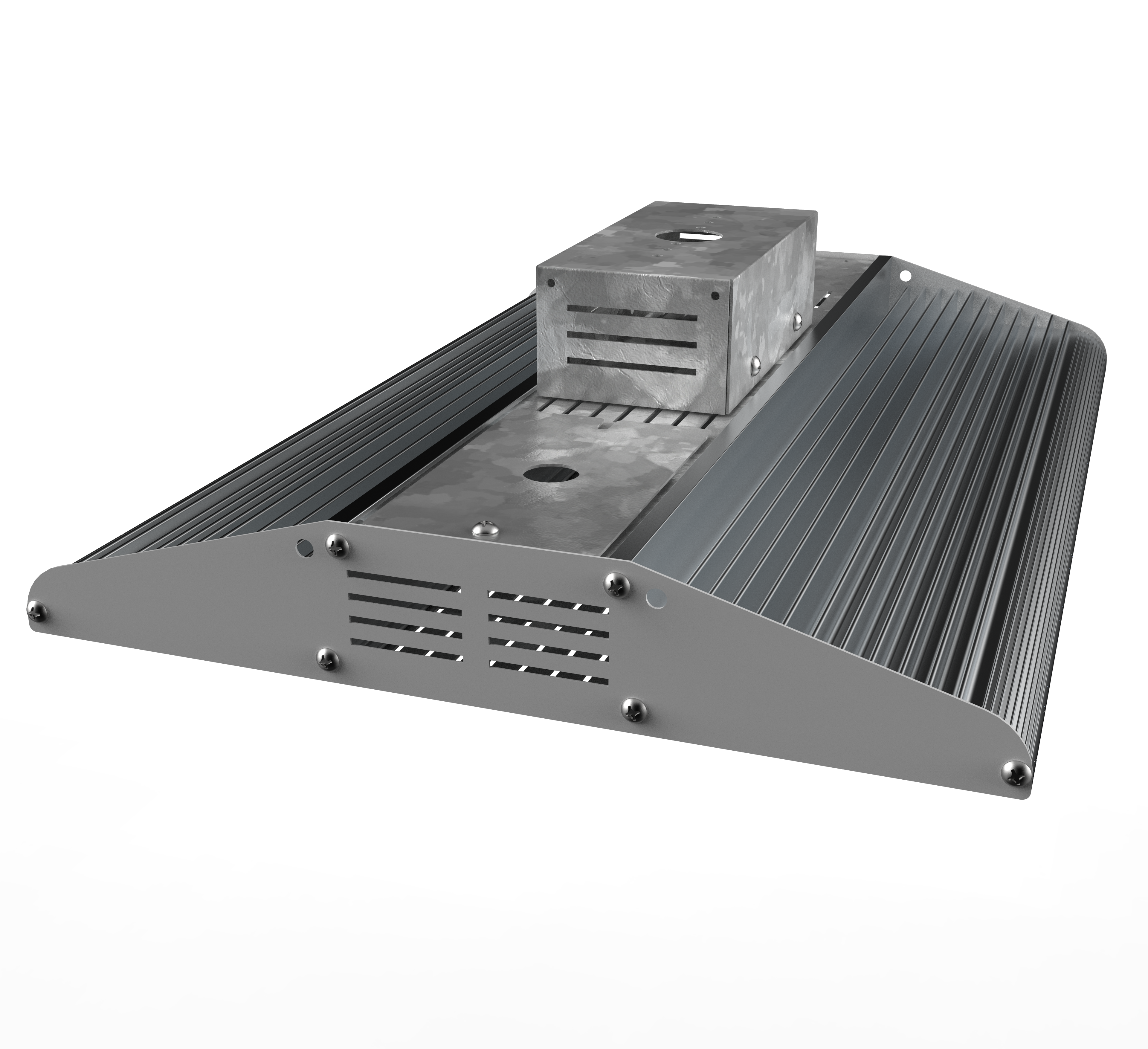

Rugged Enclosure

Extruded aluminum PCB heat sinks coupled with steel end plates ensure that the fixture efficiently dissipates heat while maintaining rigidity

Multiple Power Input Options

100-277 VAC or 480 VAC available

Dimming Ready

0-10 VDC Dimming Capable Standard

Bluetooth Mesh Available

Casambi powered networking and dimming options

Multiple Mounting Options

Airplane Cable, Pendant Mount, or even angled options available for indirect lighting

Tool-Free Driver Access

New hinged access plate design allows for convenient LED driver replacement

Technical Specifications

Build Enclosure:

    Extruded aluminum body.  Powder coated galvanized steel end caps.

Standard CCT Options:

    4000K or 5000K

Standard CRI:

    80 CRI

Efficiency:

    Up to 168 lumens per watt

Operating Temperature:

    Standard Build: -40 to 140ºF (-40 to 60ºC)

    High Ambient (HA) Build: -40 to 149ºF (-30 to 65ºC)

Mounting:

    Pendant or Cable Mount standard.  Optional end caps available that allow cable mounting angles of 0, 35, 45, 55, 65, 75.

Physical Dimensions:

    18000 & 24000 Models: 2.15”H x 13”W x 18”

    24000HA & 30000 Models: 2.15”H x 13”W x 24”

    48000 & 60000 Models: 2.15”H x 13”W x 48”

Input Power:

    100-277VAC Standard. 480VAC option available.

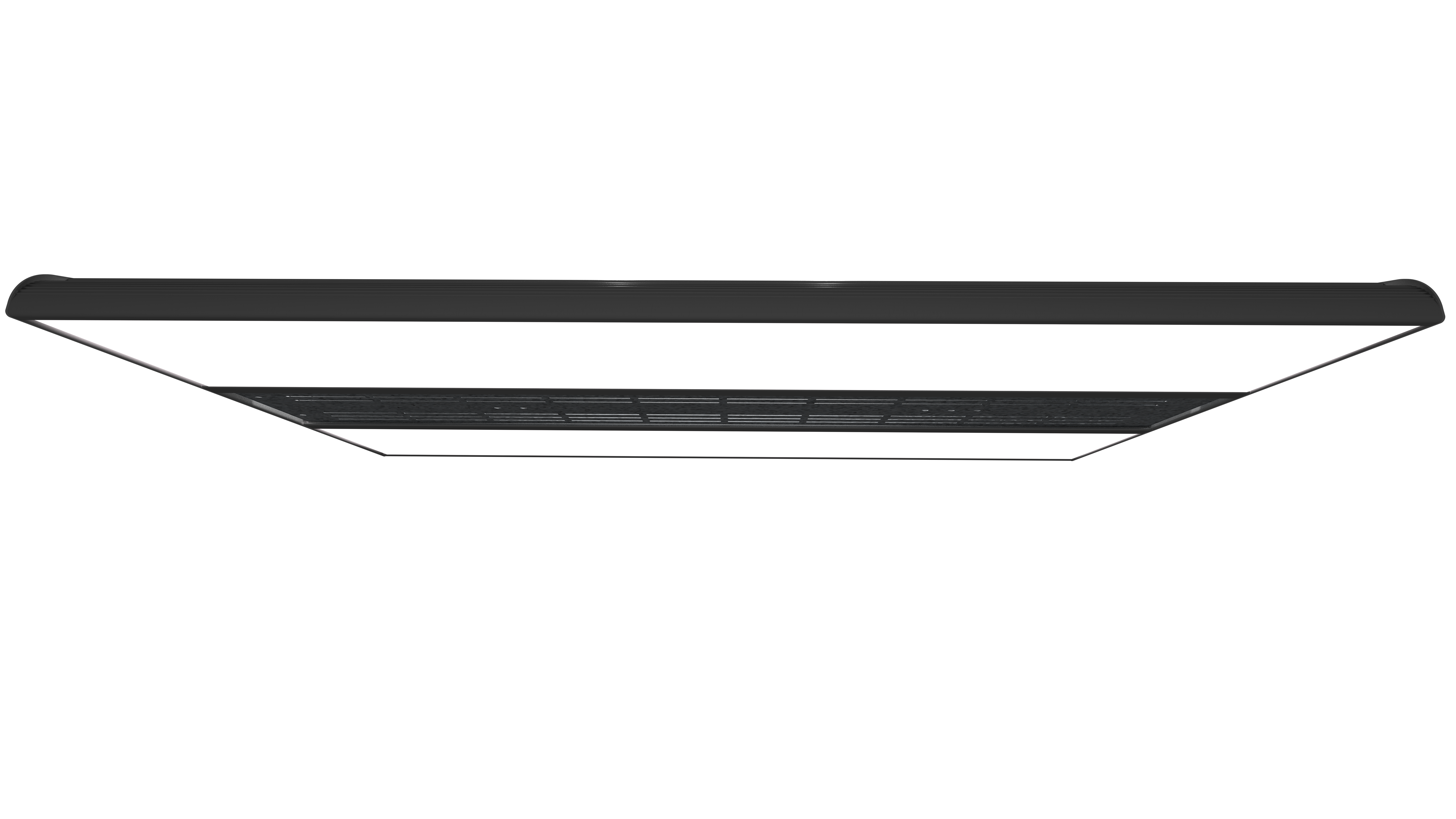

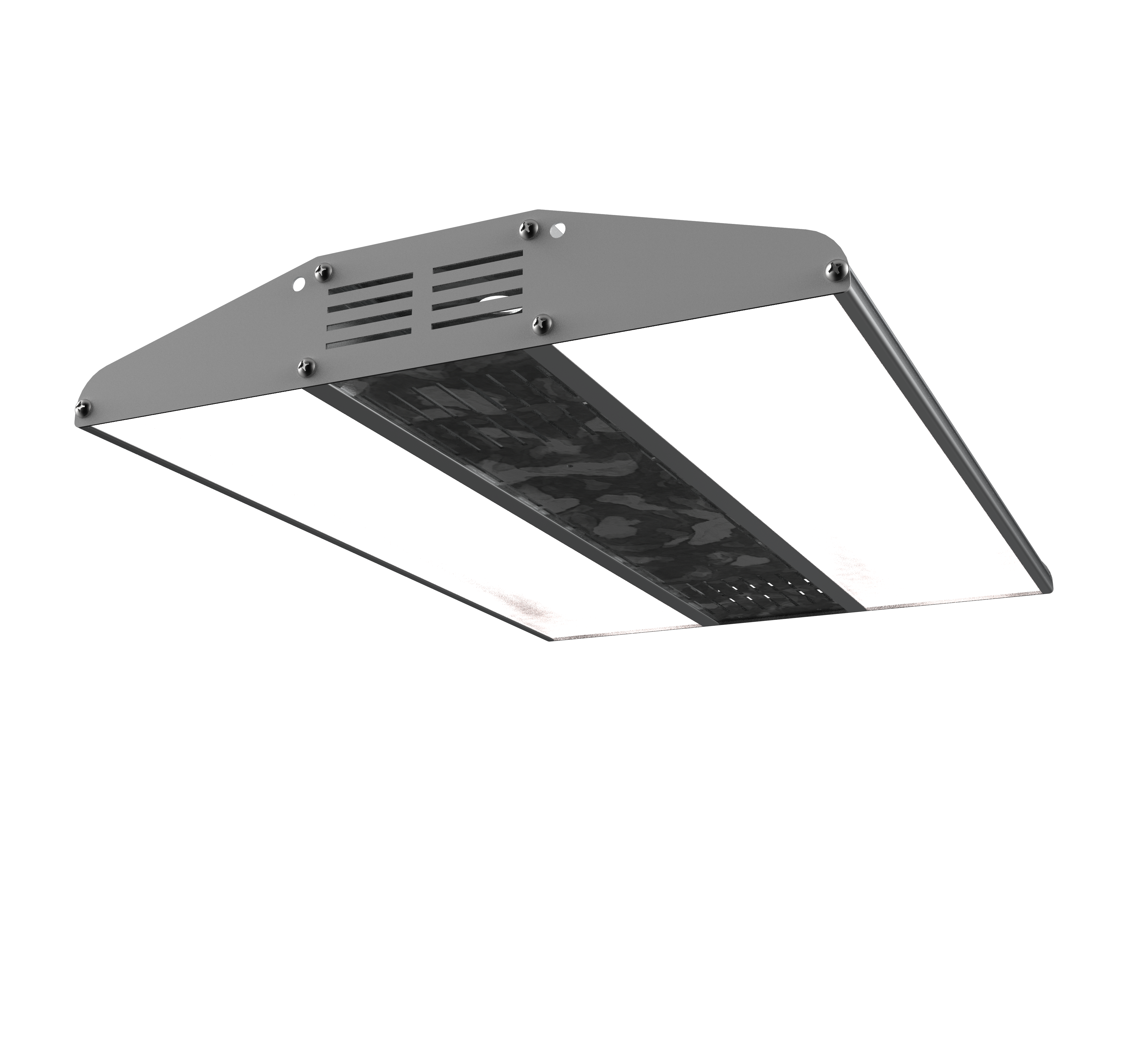

Lens Options:

    Clear/Frosted acrylic standard. Polycarbonate option available.

Networking:

    Bluetooth Mesh Dimming/Grouping available using Casambi firmware

Emergency Backup:

    20 watt backup with LiFePO4 batteries offers at least 10% of fixture output for 90 minutes

Dimming:

    0-10VDC dimming standard.

    10%-100% dimming range.

Ratings:

    CSA Listed; UL Damp and Dry rated.

A Few Current Installations

Downloads

*We are currently in the process of updating the IES files.  We recently improved the efficiency of our lights and are in the process of getting them re-certified.
